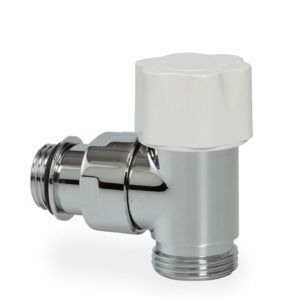

Thermostatisable valves
The screw of 50th Series valves allows to preset the flow thanks to a shaped acetal ring. The thermostatic screw enables to replace one of the o-rings on the control stem without draining the system.
furnishing valves 50 Series
Lockshields
The tightness of 50th Series lockshields is ensured by an o-ring on the obturator and, if necessary, by a further o-ring between the body and the plug. When in closed position, the tightness is granted by an o-ring and a conical metal collar. All lockshields allow for flow adjustment by limiting the lift of the obturator.

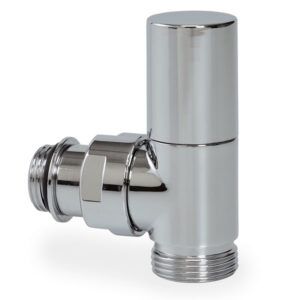

Manual valves
The 50th Series manual valve features a fixed stem, whose tightness is ensured by two o-rings. When in closed position, the tightness is granted by a flat gasket.
DN
15
Max temperature
120 °C
Max pressure
10 bar
Max differential pressure
(thermostatic valves)
0,6 bar
Max differential pressure
1 bar
Materials
CW617N
UNI EN
12165:2016
Knob
Plated ABS
White ABS
RAL 9016
Stem
AISI 316
Copper pipe
G 3/4 EK
TR 91/AC
Plastic pipe
G 3/4 EK
TP 98/C
Multilayer pipe
G 3/4 EK
TP 99/C
cylindrical thread with soft sealing
G 1/2
FINISH
chrome
white-chrome
white
HOW TO SELECT THE CORRECT COAXIAL VALVES
KT 259/A
Setting
Thermostatic
Size
DN 15 1/2
KT 258/A
Setting
Thermostatic
Size
DN 15 1/2
KT 269/A
Setting
Thermostatic
Size
DN 15 1/2
KT 273/A
Setting
Thermostatic
Size
DN 15 1/2
Kit termostatico Serie 50 KT 2059/A
Setting
Thermostatic
Size
DN 15 1/2
KT 2058/A
Setting
Thermostatic
Size
DN 15 1/2
KT 2069/A
Setting
Thermostatic
Size
DN 15 1/2
KT 2073/A
Setting
Thermostatic
Size
DN 15 1/2
Kit manuale Serie 50 KT 59/A
Setting
Manual
Size
DN 15 1/2
KT 69/A
Setting
Manual
Size
DN 15 1/2
KT 73/A
Setting
Manual
Size
DN 15 1/2
KT 58/A
Setting
Manual
Size
DN 15 1/2
TT 3000
Setting
Thermostatic
Size
M30x1,5
RS 2059/A
Setting
Thermostaticaly
Size
DN 15 1/2
RD 2058/A
Setting
Thermostaticaly
Size
DN 15 1/2
RCD 2069/A
Setting
Thermostaticaly
Size
DN 15 1/2
