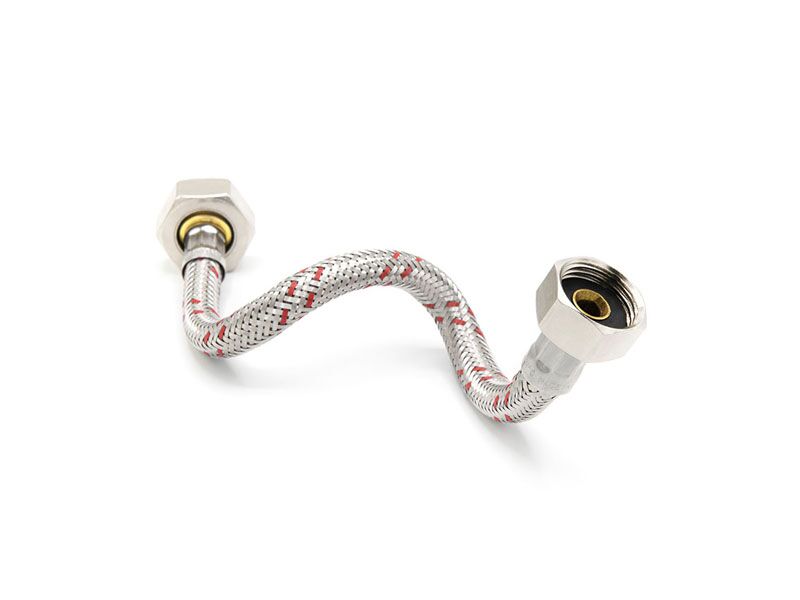

Pipe for connection of household appliances in diameters DN8, DN10 and DN13. The external stainless steel braid guarantees durability and resistance to external agents, maintaining a discrete flexibility as well as a high resistance to pressure and temperature, ideal for hot water. Available with stainless steel braid and socket and brass fittings.
E-Flex Inox
DN
8
10
13
Max temperature
70 °C
Max pressure
10 bar
Flow rate at 3 bar
28 l/min
46 l/min
74 l/min
Min. bending radius
48 mm
56 mm
72 mm
Inliner pipe
EPDM
Braiding
INOX AISI
304
Fittings
CW617N
Washing machines
Dishwasher
EPDM
EPDM rubber is the most widespread inliner material.
Available in various compounds, it shows excellent hygienic and mechanical characteristics as well as resistance to oxidation, environmental factors and high temperatures.
Female with gasket inserted
G 3/4
Elbow female with gasket inserted
G 3/4
E-Flex Inox EFI 1001
Fitting 1
Female with inserted gasket G3/4
Fitting 2
Female with inserted gasket G3/4
E-Flex Inox EFI 1002
Fitting 1
Curved female with inserted gasket G 3/4
Fitting 2
Female with inserted gasket G3/4
E-Flex Inox EFI 1301
Fitting 1
Female with inserted gasket G3/4
Fitting 2
Female with inserted gasket G3/4
E-Flex Inox EFI 1302
Fitting 1
Curved female with inserted gasket G 3/4
Fitting 2
Female with inserted gasket G3/4
E-Flex Inox EFI 801
Fitting 1
Female with inserted gasket G3/4
Fitting 2
Female with inserted gasket G3/4
E-Flex Inox EFI 802
Fitting 1
Curved female with inserted gasket G 3/4
Fitting 2
Female with inserted gasket G3/4
