Home » Catalogue » Preassembled groups » GM 1192 group » CCBAP 4025

CCBAP 4025

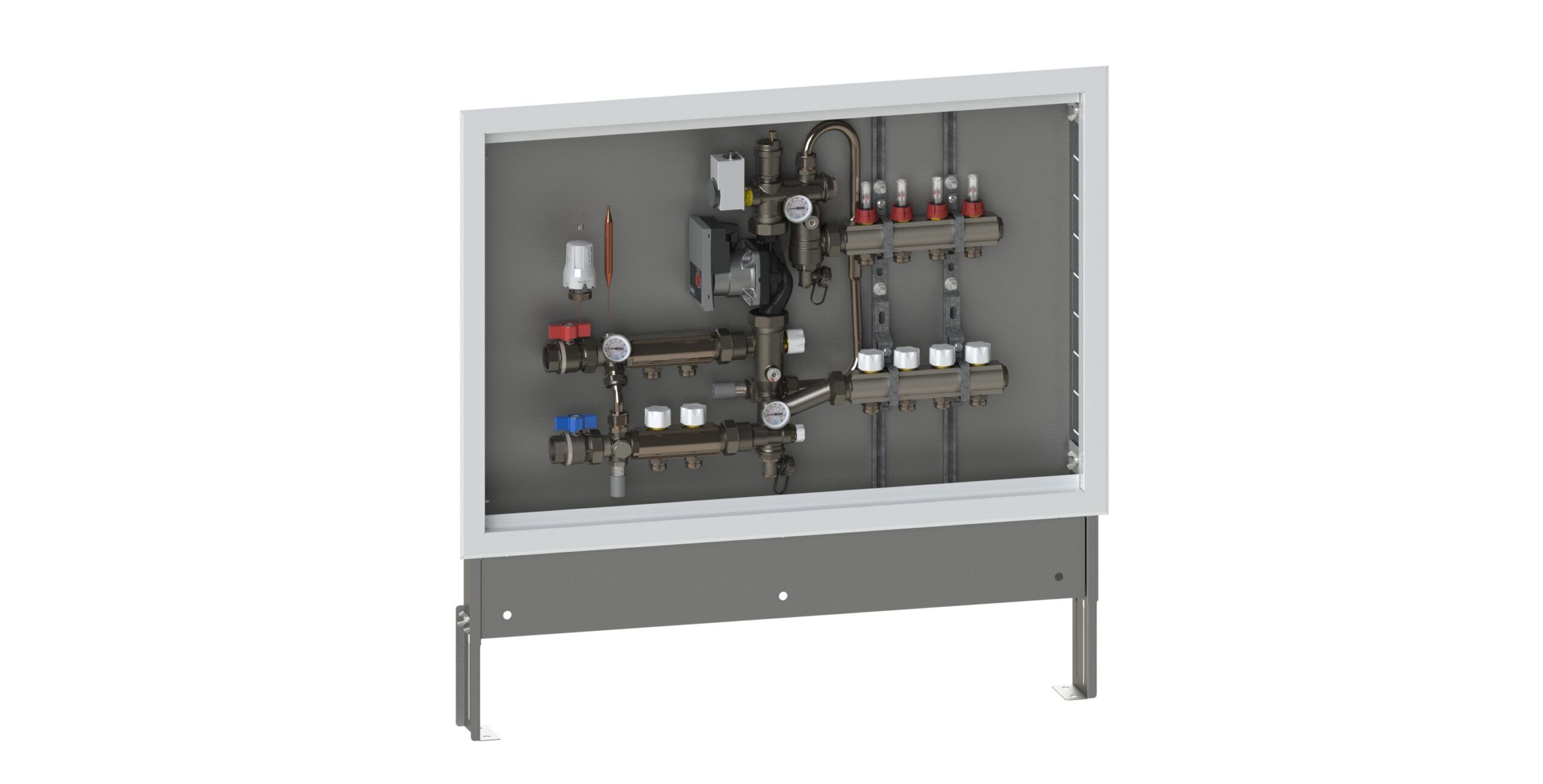

Regulation systems for radiant panels heating with mixing Group GM 1192.
Low temperature distribution system + 2 connections for high temperature (W24x19).

REQUEST INFO
Max. working temperature on primary circuit: 20 kW
Max working pressure: 6 bar
SKU: CCBAP4025 Categories: Preassembled groups, GM 1192 group
Share

Documentation


Drawing

Technical

Instruction manual
CODArticleSizeNo. of connections for panels
17402502NCCBAP4025/2G 1” x (W24x19)223.6481
17402503NCCBAP4025/3G 1” x (W24x19)324.2421
17402504NCCBAP4025/4G 1” x (W24x19)426.8361
17402505NCCBAP4025/5G 1” x (W24x19)527.431
17402506NCCBAP4025/6G 1” x (W24x19)628.0241
17402507NCCBAP4025/7G 1” x (W24x19)730.6181
17402508NCCBAP4025/8G 1” x (W24x19)831.2121
17402509NCCBAP4025/9G 1” x (W24x19)931.8061
17402510NCCBAP4025/10G 1” x (W24x19)1034.41
17402511NCCBAP4025/11G 1” x (W24x19)1134.9941
17402512NCCBAP4025/12G 1” x (W24x19)1235.5881
17402513NCCBAP4025/13G 1” x (W24x19)1336.1821
